There was this quiet hum in the workshop that day — machines warming up, acrylic sheets stacked neatly on carts, and a team getting ready to prep a batch of clear display stands. One of the junior designers paused beside a finished piece and asked me casually, “Do we need to worry about this warping if it’s used near a window with sunlight all day?” That one question opened up a much bigger conversation.
Acrylic looks solid. It’s sleek, glass-like, and sturdy in the hand. But heat changes things. And unless you understand exactly how it reacts to different temperatures, that perfect display might not stay perfect for long.
So here’s what I’ve learned after years of working with custom acrylic products — from furniture parts to store displays. If you’re designing with acrylic, sourcing it, or just curious whether it’ll hold up near heat, this guide is for you.
What is Acrylic (PMMA)?
Definition and chemical composition
Acrylic usually means Polymethyl methacrylate (PMMA). It’s a transparent plastic with a chemical backbone made from repeating methyl methacrylate units. In short: long polymer chains create a rigid, clear material.
Common types (cast vs extruded acrylic) and why it matters for thermal behaviour
There are two common types used for sheets: cast acrylic and extruded acrylic. Cast acrylic is made by pouring liquid acrylic into a mold and letting it harden. Extruded acrylic is made by pushing molten acrylic through a die.
- Cast acrylic tends to have more uniform molecular structure. It handles heat better and offers more stable optical clarity.
- Extruded acrylic is easier and cheaper to produce. But under heat or machining it is more prone to deformation, surface defects or thermal instability.
So, which type you choose matters when heat is in the picture.
What temperatures can standard acrylic sheets withstand?
Typical service temperature range for acrylic sheets
For many standard acrylic sheets, they perform safely in the range from about –40 °C up to roughly 70–80 °C during typical use.
Softening point, heat deflection temperature (HDT), and melting point of acrylic / PMMA
Here are some common thermal reference points for PMMA:
| Property / Descriptor | Typical Value (for general-purpose acrylic) |
|---|---|
| Glass transition temperature (Tg) | ~ 105 °C |
| Heat deflection temperature (HDT @ load) | ~ 95–100 °C (varies with load and sheet type) |
| Continuous / safe service temp (long-term, normal load) | ~ 65–80 °C depending on conditions |
| Melting / flow onset (if heated strongly) | ~ 130–160 °C depending on grade/thickness |
These values show that although PMMA can endure moderate warmth, it's not meant for real high‑heat applications.

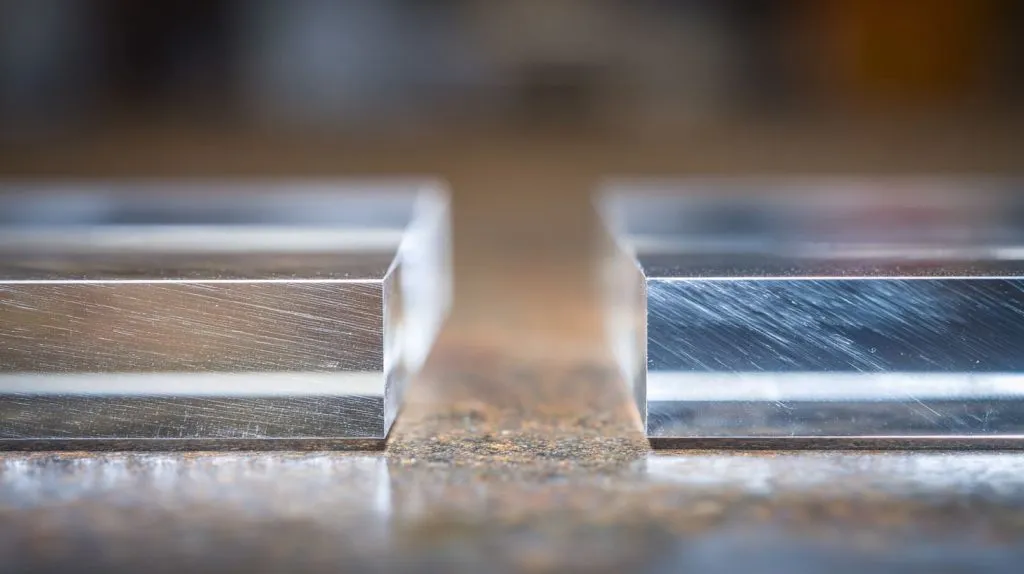

Differences between cast acrylic and extruded acrylic under heat
Because cast acrylic has a more stable molecular structure, it generally resists heat‑induced distortion better than extruded acrylic. That matters if you expect your parts to face heat or warm environments.
What happens when acrylic is exposed to heat?
Thermal expansion and dimensional changes under elevated temperature
Like most plastics, acrylic expands when heated. Its linear thermal expansion coefficient means that even moderate heating can cause noticeable dimensional changes, especially for large panels.
That means if you build a display stand or cabinet without allowance for expansion, flat surfaces or joints might warp or misalign over time.
Softening and deformation — at what temperature acrylic becomes pliable / deformable
Once temperature approaches HDT (around 95–100 °C for many sheets), acrylic starts losing rigidity under load. It becomes more flexible, easier to bend or deform.
For applications like display boxes or furniture parts, that means heat sources near or touching acrylic are a big risk — even if not “melting,” you may get visible warping or bending.
Risk of warping, melting, or permanent deformation if overheated or exposed long‑term

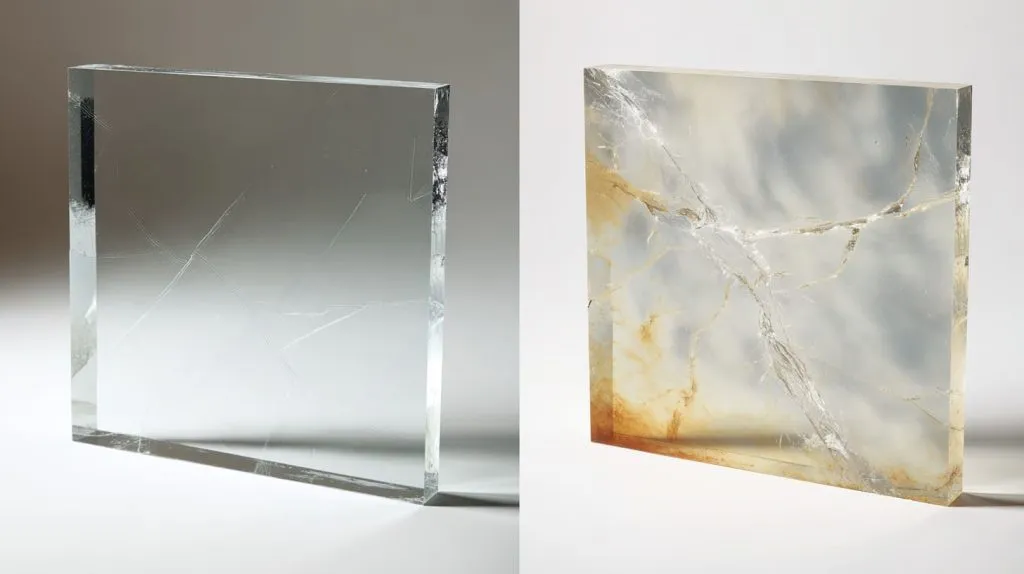

If acrylic is exposed long‑term to heat around the upper service limit (70–80 °C), or repeated thermal cycling, deformation, distortion, or loss of clarity may occur.
In extreme cases — high heat, direct flame, or strong hot contact — acrylic can melt or even burn. Its combustion temperature is far higher, but its structural integrity fails long before that.
What types of “heat exposure” are critical for acrylic — and when is acrylic still “safe”?
Short‑term vs long‑term heat exposure (transient vs sustained)
If acrylic is briefly exposed to a mild heat spike — say, a short burst near 90–100 °C but no load and then cooled — it might survive with minimal distortion. But sustained exposure even to 60–70 °C for days or weeks can lead to gradual warping or loss of rigidity. I’ve seen this in display cases left near heaters or sunny windows.
So: short ≠ long. For long-term use, stay well below the safe continuous temperature range.
Direct contact with heat sources / flames / hot objects — why acrylic is risky there
Acrylic does not like direct heat sources. Placing hot lights, lamps, heaters, or hot tools against acrylic parts is risky. They may deform, warp or even soften. In worst cases — flame contact — it can ignite or melt. It’s simply not built for that.
Indirect heat exposure (e.g. warmth, sunlight, mild indoor heating) — when acrylic typically performs acceptably
If acrylic is used in normal indoor conditions — say a room heated in winter, or soft sunlight exposure — it usually performs fine. Up to 40–50 °C is typically safe. Even occasional summer warmth does not cause issues. That is why acrylic is widely used in displays, lighting covers, and general household items.
Are there “heat‑resistant” acrylic variants?
What “heat‑resistant acrylic” means — modified PMMA or special grades for higher HDT
Some acrylic sheets are formulated or treated to improve thermal resistance. These may have higher heat deflection temperatures or slightly elevated softening points compared to standard PMMA.
Typical improved heat‑resistance limits vs standard acrylic sheets
With “heat‑resistant” grades, short-term tolerance may stretch a bit higher — sometimes closer to 90–100 °C under light load. But even then, continuous exposure above standard safe limits (70–80 °C) is still not recommended.
Trade‑offs: cost, machinability, optical clarity, and suitability for custom manufacturing
Choosing a heat-resistant acrylic often means trade‑offs: slightly higher cost, potential changes in clarity or workability, more care needed in machining or thermoforming. For a custom manufacturer like us, we must weigh if the benefit of higher heat tolerance justifies the extra cost or complexity — especially when many customers only need moderate heat resistance.
Implications for Custom Acrylic Manufacturing and Design (from a buyer / OEM perspective)
Why understanding heat limits matters when designing displays, furniture, or organizers
If you’re ordering custom acrylic displays, store fixtures, furniture parts, or organizers — heat tolerance isn’t just “nice to know.” It’s critical. Knowing the limits helps avoid future problems like warping, deformation or even safety hazards. I learned this the hard way during a factory visit — a display stand cracked after a summer of strong sunlight plus store heating.
Design precautions: spacing for thermal expansion, avoiding direct heat sources, choosing correct acrylic type (cast vs heat‑resistant)
When designing:
- Leave small gaps or joints to allow for expansion.
- Avoid mounting acrylic parts right next to heating units, lamps, or heat-generating machines.
- If environment could reach higher temperatures, specify cast acrylic or heat‑resistant grade.
These steps help maintain longevity and appearance.
Communicating with clients: specifying environmental constraints, disclaimers on heat exposure, and selecting acrylic grade accordingly
As a supplier (like us at Feilong Acrylic), it's good practice to ask clients: “Where will these parts be used? Indoor? Outdoor? Near heat?” Their answers guide material choice. It's better to be upfront about limitations than deal with complaints later.
Alternative Materials for High‑Temperature or Flame‑Prone Use
Comparison with materials like Polycarbonate — higher heat tolerance and impact resistance
If you expect exposure to high heat or flame, consider alternatives — for example Polycarbonate (PC). PC tends to have higher glass‑transition temperature and better thermal resistance than PMMA. It may handle higher loads and temperature swings more reliably.
When glass, tempered glass or metals may be better choices than acrylic for heat‑prone environments
In situations with strong heat, direct flame, or heavy thermal cycling — glass, tempered glass, or metal parts are often safer and more stable. Acrylic simply wasn’t designed for that kind of abuse.
Conclusion
I love acrylic for what it delivers: clarity, lightness, ease of machining — and when used right, it works beautifully. But it has limits. For most everyday uses — displays, organizers, indoor furniture — acrylic (especially cast PMMA) is just fine. It handles typical indoor warmth or mild sunlight without fuss.
But if you plan to expose it to real heat — hot lamps, sunlight + heat, heating units nearby, or any flame/heat source — treat acrylic with caution, or choose a more heat‑resistant material. As always in custom manufacturing: knowing what you build for — and where it lives — makes all the difference.
