Two months ago, on a soggy Tuesday evening, I rummaged through my kitchen junk drawer hunting for one lone Allen key. Pens, rubber bands, and grocery receipts formed a chaotic stew. The irony stung—I craft pristine acrylic displays every day, yet my own drawer looked like a yard-sale bargain box. I grabbed a notepad, sketched a divider, and set up my laser. That small project now saves me minutes each morning and sparked this guide.
Why custom acrylic drawer dividers are worth the effort
A divider is not décor. It is workflow. When every slot holds a purpose, you waste less time hunting and more time creating. Acrylic, with its crystal-clear walls, lets you spot the tool before you need it.
Who this guide is for (designers, DIYers, small-batch fabricators)
If you sketch in CAD, slice on a laser, or just love a sharp craft knife, this walkthrough is yours. I share factory tricks that scale from one prototype to a thousand units.
Ready? Let’s lift the drawer and see what makes acrylic the hero of hardware.
Understanding Acrylic as a Divider Material

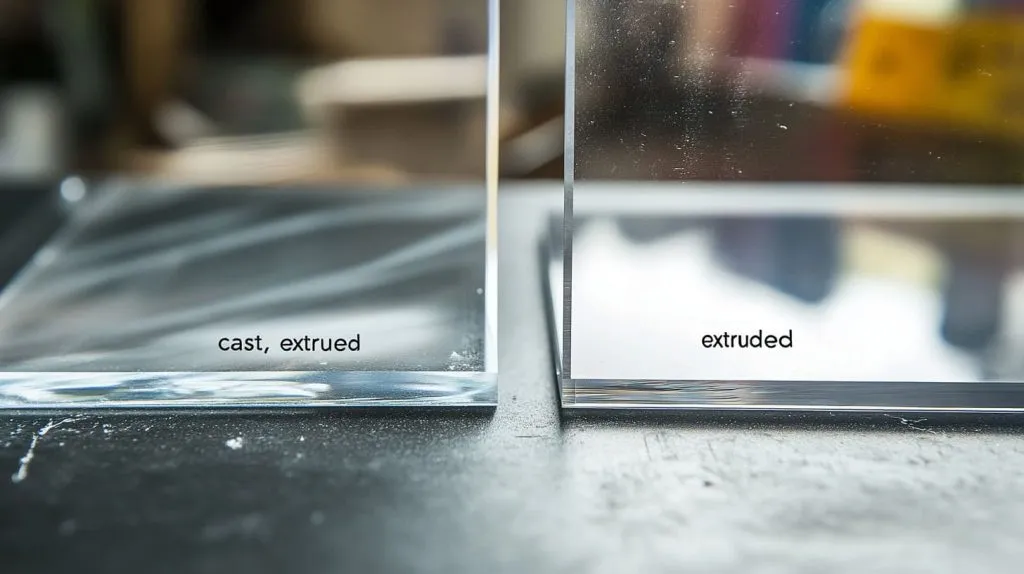

Cast vs. extruded acrylic: strength, clarity, workability
| Feature | Cast Acrylic | Extruded Acrylic |
|---|---|---|
| Optical clarity | High, minimal haze | Good, slight wave |
| Thickness tolerance | ±5 % | ±10 % |
| Machining response | Chips cleanly | Melts faster |
Cast sheets resist crazing when you solvent-weld bends. Extruded costs less but softens sooner under a saw blade. Pick based on budget and cut method.
Key advantages over wood, MDF, and cardboard inserts
- Moisture proof — spice spills wipe clean.
- Thin yet rigid — maximize space.
- Light passes through — drawer feels bigger.
Limitations you must plan around (thermal expansion, brittleness)
Acrylic moves with heat. Leave a hairline gap so panels don’t press the drawer rails on hot days. Heavy impact can chip edges, so round them.
A messy material story would bore anyone; let’s dive into design so your first measurement is your last guess.
Planning Your Divider Layout
Measure twice: capturing interior dimensions & slide clearance
Pull the drawer out, flip it. Measure width, depth, and height at three spots each. Rails often taper. Record the smallest value.
Mapping compartment needs (utensils, cosmetics, tools, etc.)
List items, then group by size. I sketch boxes on sticky notes, shuffle until every piece claims a home.
Sketching or CAD: turning measurements into a cut plan
I prefer free web CAD for accuracy. If paper calls you, scale 1 : 1 graph sheets work. Label every wall: W1, D1, H1.
Plans in hand, tools call. But which blade, which glue? Keep scrolling; I break it down next.
Tools & Materials Checklist
Choosing sheet thickness (2 mm–6 mm) for strength vs. space
| Drawer Use | Suggested Thickness |
|---|---|
| Light office supplies | 2 mm |
| Makeup & skincare | 3 mm |
| Hand tools | 5–6 mm |
Cutting options: scoring knife, table saw, CNC router, laser cutter
Laser gives hair-line kerfs and burnt-sugar edges. Hand-score suits straight lines on thin sheet. A fine-tooth table saw feels fast when batches grow.
Adhesives & fasteners: solvent welding acrylic, CA glue, acrylic weld-on, mechanical slots
Solvent cement fuses panels at the molecular level. CA glue is quick yet brittle. Slots remove glue hassles but demand cutting precision.
Safety gear and workspace must-haves
- N95 mask for dust.
- Cotton gloves to dodge fingerprints.
- Soft mat so panels land safe if they slip.
Tools chosen, panels wait for their first cut. Let’s slice without tears.
Cutting & Shaping the Panels

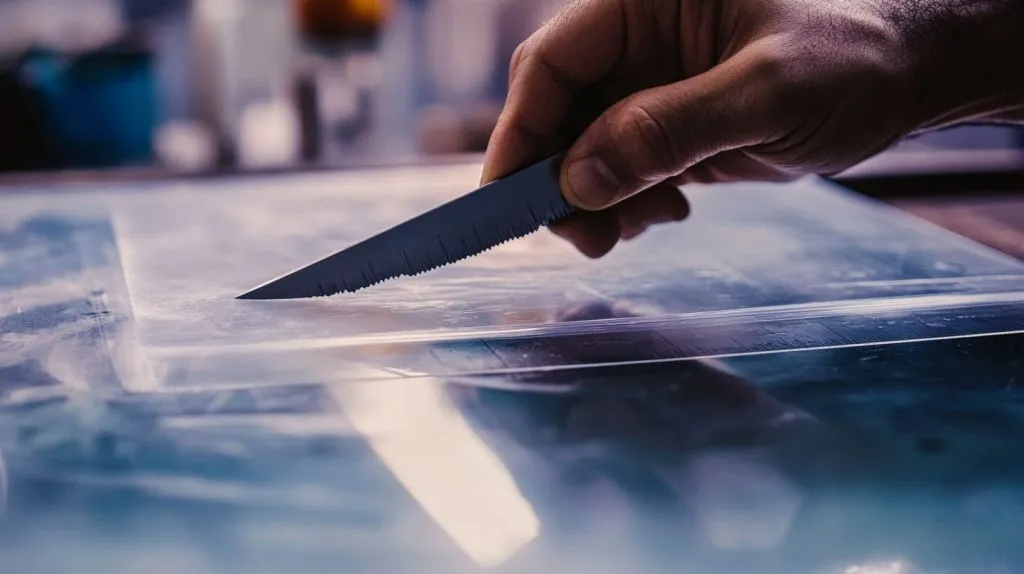

Score-and-snap for quick, straight cuts
Draw the knife along a steel ruler ten passes. Flip, bend over the bench edge; CRACK—clean break.

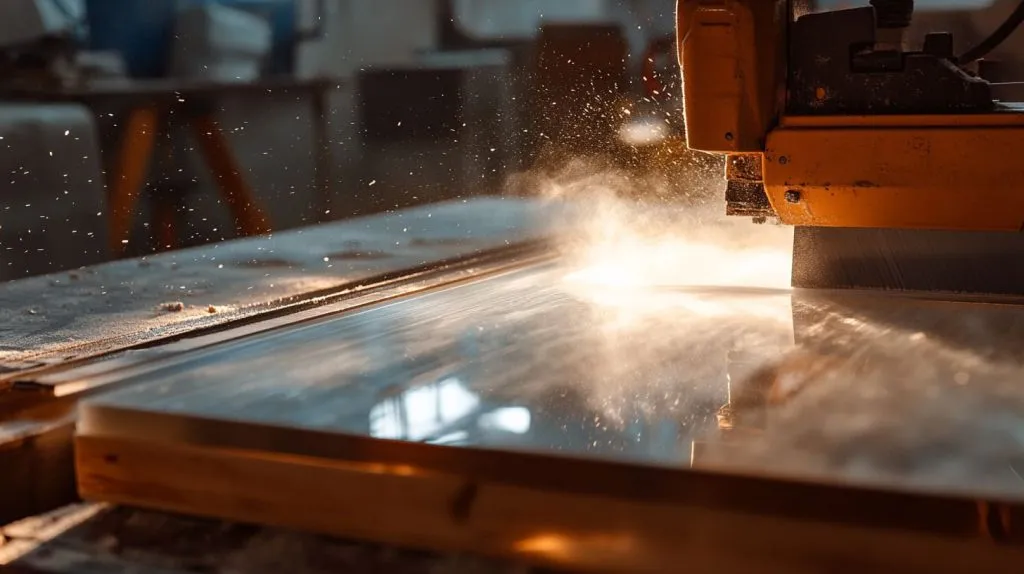

Sawing acrylic cleanly (blade types, feed rates, chip removal)
Use a triple-chip-grind blade. Push steady. A shop-vac hose beside the kerf keeps chips from welding back.
Laser cutting for precision & tab-slot joints
I set 5 mm/s on a 60 W CO₂ laser for 3 mm sheet. Tabs 0.1 mm tighter than slots lock snug.
Edge prep: deburring, chamfering, rounding
Scrape with a dull chisel for a frosted bevel. Run 320-grit, then 600-grit. A smooth edge saves skin and eyes.
Edges smooth, panels line up like soldiers. Next comes the marriage ceremony: glue.
Bonding & Assembly Techniques

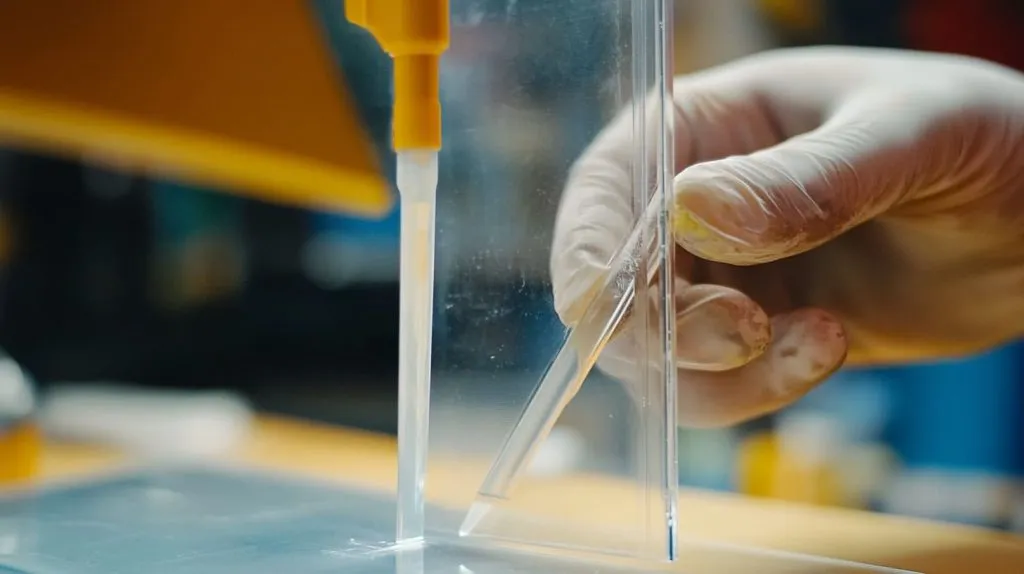

Solvent welding basics and capillary action tips
Tip the panel 45°. Touch the applicator needle. The solvent races the joint, pulling itself inside. Ten seconds, joint fixed.
Using CA glue + activator for rapid prototyping
One drop, hold five seconds, spritz activator. Again: brittle—great for mock-ups, not final builds.
Designing interlocking slots/finger joints for tool-free assembly
Slots should equal sheet thickness plus 0.1 mm. Chamfer slot edges so panels start easy.
Clamping, curing times, and avoiding squeeze-out marks
Use spring clamps with scrap card spacers. Wait 30 min for a green joint, 24 h for full cure.
Bonds set, surfaces dull. Let’s polish until the edges sing.
Finishing Touches
Sanding grits & micro-mesh polishing workflow
Start 800-grit wet, move to 1200, then micro-mesh 4000. Final pass with a cotton wheel and plastic polish.
Flame-polishing edges for glass-like clarity
Wave a propane torch fast, 2 cm away. The edge flashes clear. Practice on scrap first.
Adding felt feet, silicone pads, or pull handles
Stick-on dots stop rattle. Tiny acrylic knobs help lift the divider for cleaning.
Fresh shine invites a test-fit. Let’s slide it home.
Installation & Adjustment
Dry-fit checklist before final bonding
Insert without glue. Check every gap. Dividers should not press the rails.
Ensuring drawers still slide smoothly under load
Fill the heaviest compartment and open-close ten cycles. Listen for scrape.
Modular designs: removable vs. fixed dividers
Finger-joint modules lift out for sink wash. Solvent-welded grids suit permanent kitchens.
The divider lives in its drawer now, but care keeps it young. Onward to upkeep.
Maintenance & Cleaning
Scratch prevention and safe cleaners (no ammonia)
Use microfiber cloth with mild dish soap. Ammonia clouds acrylic; avoid it.
Polishing out light scuffs over time
Plastic polish removes haze. Follow the same micro-mesh steps as finishing, but only where needed.
Good care lowers repair calls, yet mistakes happen. Let’s pre-empt them.
Troubleshooting & Common Mistakes
Preventing crazing and stress cracks during bonding
Never flood the joint. Excess solvent digs fissures. Light capillary feed is best.
Fixing mis-cuts or out-of-square corners
Fill gaps with clear two-part epoxy, then sand flush. Next time, slow your saw.
Dealing with adhesive blemishes and fogging
Polish out fog with 2000-grit and polish cream. Deep cloud? Replace the panel; time is cheaper than regret.
But what does time actually cost? Let’s see numbers.
Cost, Time & Skill Considerations
| Build Route | Material Cost (USD) | Tooling Time | Skill Level |
|---|---|---|---|
| Hand score & glue | 12 | 1 h | Beginner |
| Table saw & solvent weld | 18 | 45 min | Intermediate |
| Laser cut tab-slot | 25 | 20 min | Advanced |
Sheet off-cuts become the next project, so waste less. Labor beats material in cost once you batch.
Not every client wants custom though. Options abound.
Alternative Paths & Ready-Made Options
Custom laser-cut files from marketplaces (Etsy, Glowforge)
Buy a DXF, load, cut. Good for one-offs when CAD time is tight.
3D-printed separators as a hybrid solution
PLA frames insert between acrylic walls, reducing glue lines.

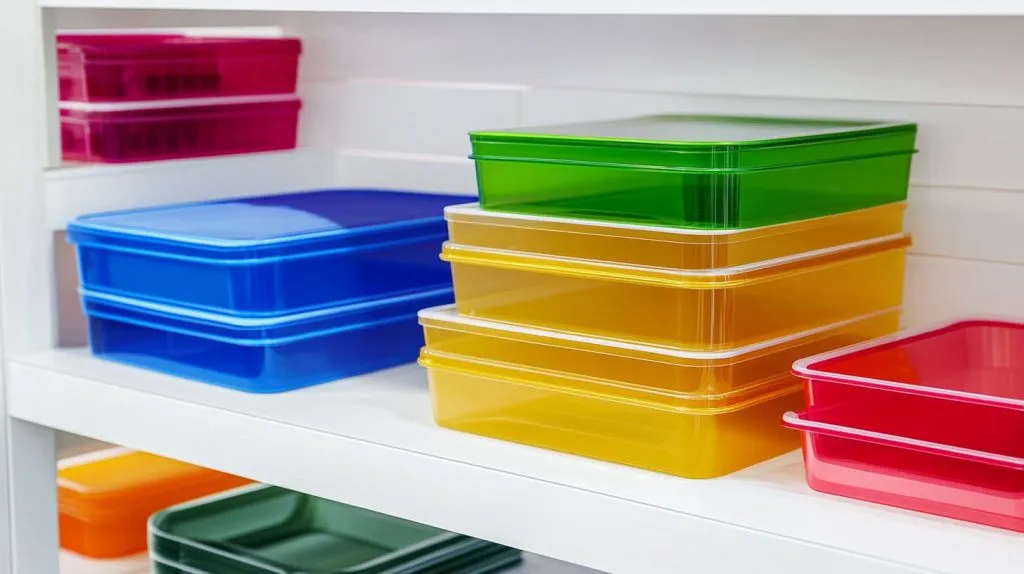

Off-the-shelf organizers—when buying makes more sense
If deadlines loom tomorrow, prefab plastic trays rule.
Even prefab can’t match the pride of making. Let’s spark ideas for your next build.
Inspiration & Customization Ideas
Kitchen utensil drawer layouts
Divide long utensils diagonally to fit spatulas without wasting length.
Makeup & skincare compartments with tiered heights
Stack shallow lipstick wells over deeper bottle slots. Two-layer grids double capacity.

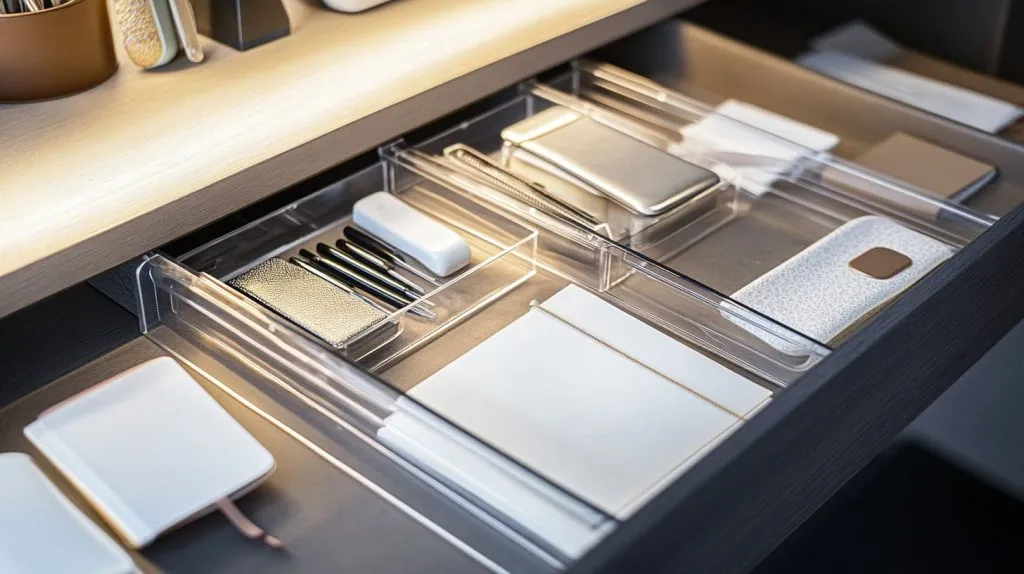

Office drawer “command centers” for stationery & gadgets
Cable pass-through holes turn a drawer into a charging dock—no more desk clutter.
Now you hold the roadmap from blank sheet to glossy grid. One last wrap-up.
Conclusion
I measured, cut, glued, then smiled at a drawer that finally obeys me. You can, too. Map the space, pick the right acrylic, test, polish, and never fear a mistake—each scratch teaches the next build. Prototype, iterate, scale. Your drawer might be the first of many happy clients.
